Galvanized Transmission Power Pole , Electric Steel Utility Pole
1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q355(S355JR), Q460,etc
2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.
3) Finish: Hot-dip galvanized in accordance with ASTM A123. Min Zinc Coating 86 microns.
4) Pole Height: Transmission pole ≥ 15M
5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole,
single or double tensile/terminal/straight pole, etc)
7) Surface hot-dip-galvanized and sometimes with Bituminous Painting as customer's request.
8) Resistant: against earthquake of 8.8 grade. Wind speed as design.
9) Quality Standard: ISO9001:2000,AAA credit rating
10) Easy install and maintenance
11) Packages: Normally covered by sack or as customer’s requirement.
12) Voltage:10-550KV
Description
Our Transmission steel poles, being manufactured from steel sheet that has been subjected to hydraulic pression and longitudinal welding, has a tapered tubular structure with a multilateral cross section. To achieve a proper height, steel poles can be assembled by insert mode or flange mode at the installation site.
The hot dip galvanization technique could protect steel pole from corrosion for as long as 50 years
As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.
Accessories:
1. Pole
2. Base Plate
3. Pole Top Cap
4. Butt Bearing Plate
5. Holes
6. CrossArm
7. Grounding Nut & Bolts
8. Anchor Bolts
9. Climbing Rungs
10. Identification Plate
11. Bituminous Painting if needed
12. Hot dip galvanized.

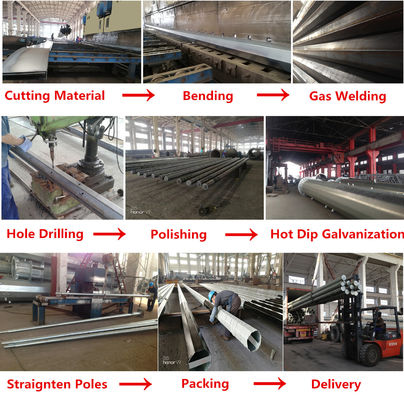

Production Line
- Raw material test
- Cutting
- Bending
- Welding (longitudinal )
- Dimension verify
- Flange welding
- Hole drilling
- Calibration
- Deburr
- Galvanization or powder coating or Bituminous painting
- Recalibration
- Packages
Parameter
| Products |
- Dodecagonal Electrical Transmission Power Steel Pole for 69KV Transmission Line
|
| Type |
- Suspension Pole , Tensile Pole , Strain Pole , Angle Pole , etc
|
| Voltage Grade |
- 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 69KV , 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )
|
| Height |
|
| Shape |
- Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc).
|
| Material |
- Hot Roll Steel Sheet Q355, GR50 which equivalent to S355JR.
- Min Yield Stree 345 Mpa
- Tensile Strength 470 Mpa ~ 630 Mpa
|
| Wall thickness |
|
| Once Forming |
- 14m Once forming without joint
- 40GP, 40HQ container Length is 12m , so the poles will be or more than 2 segments if longer than 12m.
|
| Welding |
- Welding complies with AWS D1.1 standard.
- CO2 welding or submerged arc auto methods
- No fissure, scar, overlap, layer or other defects
- Internal and external welding
- Ensure 100% complete penetration welds.
|
| Joint |
- Joint with insert mode, flange mode.
|
| Base plate |
- Base plate is square/round/Polygon with slotted holes for anchor bolts installation.
|
| Galvanization |
- Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123.
|
| Warrantly |
- More than 25 years, it is according to installing environment
|
Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.
Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other
payment way can be negotiated.
4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.
5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’
requirement.
Our Services
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM & UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles
for more than 10 years, competitive with good quantity.
7 Sample: We can send out sample for test in one week if the order quantity is big enough.
But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines,
skilled technicians to ensure our products to be finished in high quality and stable feature.
